ECO Series Refrigerated Air Dryer: Working Principle, Features and Applications

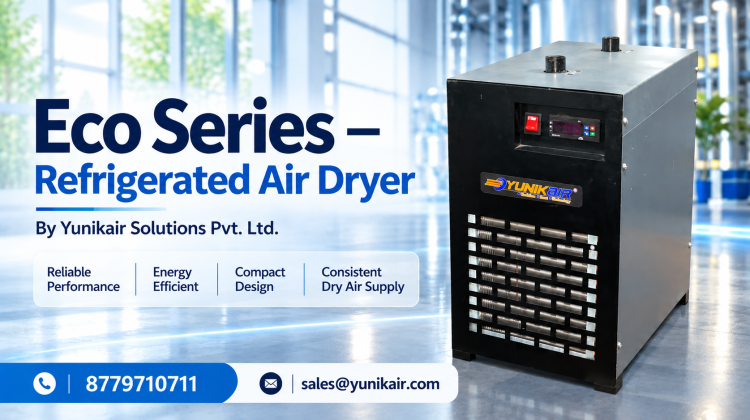

The ECO Series Refrigerated Air Dryer by Yunikair Solutions Pvt. Ltd. is designed for compressed air drying applications across various industries. It helps remove moisture from compressed air through cooling, condensation, moisture separation and drainage.

As an international-standard manufacturer of refrigerated compressed air dryers, Yunikair Solutions Pvt. Ltd. offers air dryers designed to purify compressed air containing dust, oil and moisture.

Working Principle of ECO Series Refrigerated Air Dryer

Shell-and-Tube Heat Exchanger

In a shell-and-tube type air dryer, the heat exchanger consists of a large outer shell (cylindrical vessel) and a bundle of tubes inside. Compressed air flows either through the tubes (tube side) or around the tubes (shell side), while the refrigerant or precooled air flows through the other path.

This counter-flow or cross-flow heat exchange cools the compressed air, causing moisture to condense. The condensed moisture is then separated and drained.

Working Process

Warm compressed air enters the air-to-air heat exchanger, where it is precooled by outgoing cold refrigeration air. Precooling makes it possible to use a smaller, more economical refrigeration unit.

The precooled air then enters the Freon heat exchanger, where it is cooled to +3°C. At this temperature, moisture condenses into liquid droplets.

The condensed moisture is removed from the air stream by an efficient demister and automatically drained through an Automatic Drain Valve.

The cold, dry compressed air then passes back through the secondary side of the air-to-air heat exchanger, where it is reheated by the incoming warm air.

The dry air coming out of the air dryer is ready to use for instrumentation and process air applications.

Features of ECO Series Refrigerated Air Dryer

Compact Design
High Quality Finishing
Easy Installation
Environment Friendly
Power Saving
Low Pressure Drop
More Reliability
Reduced Maintenance
Constant Dew Point at All Varying Loads

Applications of Refrigerated Air Dryer

The ECO Series Refrigerated Air Dryer is suitable for the following industries and applications:

Automobile Industry
Chemical Industry
Electronics Industry
Beverage Industry
Pharmaceutical Industry
Cement Plants
Spray Painting
Printing and Textile Industry
Paper Mills
Rice and Sugar Mills
Hospitals
Tool Rooms
Power Plants
PET Blow Moulding
CNC and CMM Machines
General Instrumentation
Many More Industrial Applications

YLRD Series – Low-Pressure Air Dryer

The YLRD Series is a low-pressure air dryer range with the following specifications:

Capacity Range: 15 CFM to 2,000 CFM
Compressed Air Pressure: Up to 16 bar

YHRD Series – High-Pressure Air Dryer

The YHRD Series is a high-pressure air dryer range with the following specifications:

Capacity Range: 25 CFM to 1,500 CFM
Compressed Air Pressure: Up to 40 bar

Conclusion

The ECO Series Refrigerated Air Dryer by Yunikair Solutions Pvt. Ltd. is designed for compressed air moisture removal across a wide range of industrial applications.

Its working process includes precooling, refrigeration cooling, moisture condensation, separation, automatic drainage and reheating. With features such as compact design, power saving, low pressure drop, reliability and reduced maintenance, the series serves various compressed air drying requirements.
