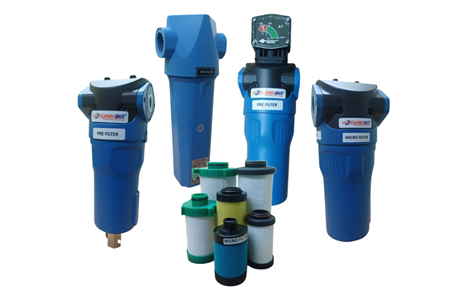

Air Filters
Yunik Air Solutions is a trusted manufacturer of high-performance compressed air filters designed to remove dust, oil, moisture, and other contaminants—ensuring clean, dry air for critical industrial applications.
Working Principle
Contaminated compressed air enters the filter housing and passes through a multi-layer filtration media. Dust particles, oil aerosols, and moisture are efficiently separated using centrifugal action, coalescing elements, and absorption layers. The clean, filtered air exits the system, while collected contaminants are drained through an automatic drain valve, ensuring uninterrupted performance and protection of downstream equipment.
Key Specifications
- Filtration Levels: 1 micron, 0.01 micron, and activated carbon
- Operating Pressure: Up to 16 bar
- Flow Capacity: Available from 15 CFM to 2000 CFM
- Drain System: Automatic drain valve
- Body Material: Aluminum with corrosion-resistant coating
- Installation: Vertical wall-mount
- Design & Construction: Must comply with pressure vessel codes like IS 2825 or ASME Section VIII, Division 1.
- Material: Typically constructed from IS 2062 or IS 2002 grade steel, depending on pressure requirements
- Testing: Receivers are hydrostatically tested at pressures higher than their working pressure to ensure safety.
- Fittings: Standard fittings include pressure gauges, safety valves, drain valves, and inlet/outlet nozzles as per ANSI B16.5
- Inspection: Can be certified by third-party agencies or Chief Controller of Explosives (CCE) depending on application.
